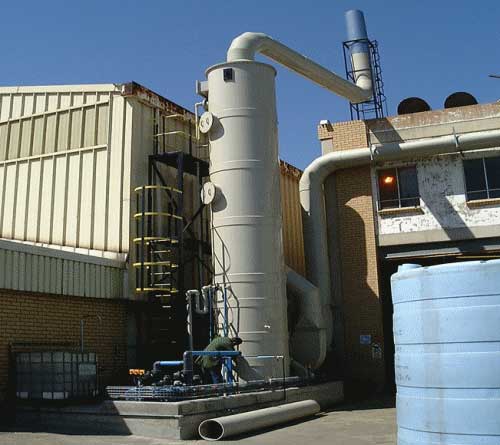

We are designing scrubber system as per pollution control board norms. We are supplying scrubber systems including gas collecting hoods, ducting net work, scrubber with recirculation pump & piping, centrifugal exhaust blower and chimney. We carry out turn key order for the design, supply and installation of scrubber system to provide total solution for hazardous gases.
1. Packed Bed Scrubber
The Packed Bed Scrubbers, packed with hollow thermoplastic elements remove soluble gases like HCL, CL, BR2 & NH2, and SO2 H2S & NOx. This equipment is used to purify hazardous exhaust gas through its internal special filling pieces which enlarge the surface between exhaust gas and fluids. These are perhaps the most important & widely used gas scrubbers. The efficiency of the scrubber is the function of interfacial area between the gas, the liquid and the turbulence at the interface.
-
Capacity : 100 m³ / hr to 1, 00, 000 m³ / hr
-
Material of Construction : Thermoplastic + FRP, Thermoplastic etc. FRP, FRB, FRVE
-
Advantages : High mass transfer efficiencies Lower Installation Cost due to light weight Low pressure drop Longer Services Life
2. Venturi Scrubber
Venturi Scrubber is specially designed for removing dust, fumes, solids and liquid particulate. In this scrubber, gas stream and scrubbing liquid is brought into violent turbulent contact. The stream passes through high velocity venturi throat section and in the course; pollutants get removed from industrial emission sources. Most suitable to remove particulate matter of upto 0.1 micron size from exhaust gas streams, this scrubber is designed to sustain flammable, corrosive, and other conditions with difficult-to-handle solids. The liquid flow is atomized by the gas flow during its entry into the throat of venturi. The other method of atomization is through the nozzle which is done directly into the gas stream. Post the cleaned gas exits vertically from cyclone, the recovered liquid is returned for recycling into the sump.
-
Applications : Metallurgy industry for several types of degasses Waste combustion installations Chemical industry for the removal of dust and aerosols Sinter processes Dust processes Manure production Gasification processes Potato industry for the disposal of starch Pharmaceutical industry Plastic industry
-
Capacity : 100 m3 / hr to 100, 000 m3 / hr
-
Material of Construction : FRP moulded & filament wound scrubbers use bisphenol, isopthalic, epoxy and vinylester design FRP , FRP + Thermoplastics, FRB, FRVE
-
Advantages : High disposal efficiency Simple and compact construction Relatively little maintenance Insensitively for fluctuating gas flows No mechanical components Gaseous components are absorbed Require no aerator
