Description
Our enormous range of products includes FRP / GRP canopy has become exceptionally prominent in the overseas market. Made of sublime quality raw FRP materials, these products offer precision and ideal scope to different electrical installations. Owing to their high sturdiness & quality and sufficient safety against unfavourable climate conditions, our products have earned the commendation of our clients.
Aeron is a reliable manufacturer of FRP, GRP canopies, FRP instrumentation canopies, motor guard canopies, and PA system canopies in numerous specifications. The range of canopy products is water resistant, durable, anti rust, easy to maintain, built in paint, and cost effective. We are authentic suppliers and exporters of FRP GRP profiles. Every profile is manufactured with resin matrix and fibre reinforcement to get utilized by diverse industrial clients.
-
Salient Features of Motor Guard, Push Button and Junction Box Canopies : 100% Corrosion Free Uv Protected Insulating Material Light Weight Excellent Resistance To Chemicals / Acids Very Easy To Install Long Life Fire Retardent Maintenace Free Electric Shock Proof Zero Environmental Effect
Application : Electrical substations Road Divider Fencing Garden Fencing High voltage pylons Live plant in general Transformer buildings

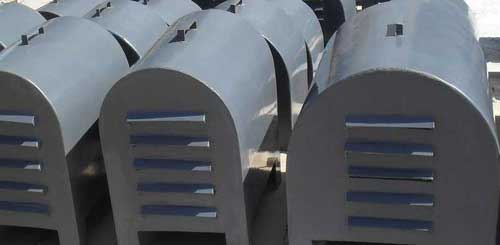

FRP MOTOR CANOPY SPECIFICATION
FRP protection canopy for instrumentation and electric equipments : We configure canopies that guard your motors. The span of the motor protection shell is focused around the physical measurements of the motor cover it is so that a uniform leeway of no less than 50mm is kept up on all sides concerning the motor body with the end goal of – proper circulation of air along with the louvers and for the ease of installation or lifting. Proper Circulation Of Air Along With The Louvers For The Ease Of Installation/ Lifting
It should cover the motor fully to protect from Rain Water Chemical Or Water Spillages Heat Dust Hit Of Falling Objects
SPECIFICATION SHEET
Parameters Specifications Material Of Construction FRP Type Of Resin Isopthalic / General Purpose Glass Fibre Chopped Strand Matt Shape & Size As Required Colour Light Grey Thickness 3 To 5 mm Louvers Yes Handles Yes Finish Outside Smooth Finish (One Sided Finish Supporting As Required At Site By Frp Angles / Channels Corrosion Resistance Yes Uv Stabilized Yes Moulding Process Contact Molding Process Flammability Low Flammability Glass Contents 30 To 33% Oxygen Index 27 To 30 Flame Spread Index 14 To 15 SELECTION TABLE FOR NFLP MOTORS
Frame Size Horse Power 3000 rpm 1500 rpm 1000 rpm 80 1 To 1.5 0.75 To 1 0.5 To 0.75 90 2 To 3 1.5 To 2 1 To 1.5 100 4 3 To 4 2 112 5.5 5.5 3 132 7.5 To 10 7.5 To 10 4 to 7.5 160 15 To 25 15 To 25 10 To 15 180 30 25 To 30 20 200 40 To 50 40 25 To 30 225 60 50 To 60 40 250 75 75 50 280 100 To 125 100 To 125 60 To 75 315 150 To 230 150 To 230 100 To 195 355 320 To 390 305 To 365 245 To 285 400 440 To 520 440 To 520 380 To 435
